CSD Facade Systems

Schüco Doors

The door doesn't just provide direct access to the inside of a home, it also gives a first glimpse of the inhabitants' character. Schüco entrance doors combine numerous, timeless designs with the highest degree of security, thermal insulation, weathertightness and durability. This means there are virtually no limits to creativity – even large-scale doors are feasible.

An door for the most demanding requirements in form and function

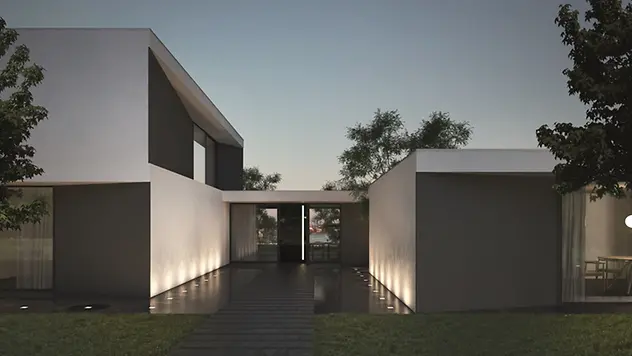

The Schüco Design Edition door incorporates the most demanding aesthetic requirements with an illuminated flush pull grip integrated in the door leaf profile as a design highlight. The flush pull grip melds seamlessly into the standard profile geometry of the door and together with the leaf-enclosing infill offers a flush-fitted appearance, which is of course combined with outstanding thermal insulation properties and stability. The indirect, energy-saving LED illumination harmoniously accentuates and emphasises the handle's discreet design.

Doors - Product List

Schüco Door System ADS 50


Uf value of frame (≥)	3.5 W/(m²·K)
Max. glass/panel thickness	32 mm
Max. width	1100 mm
Max. height	2500 mm
Max. vent weight	150 Kg
Area of application	External use, Residential projects, Commercial projects
Air permeability	Class 2
Watertightness	Class 4A
Burglar resistance	Up to RC 2
Wind load resistance	Class C3
Impact resistance	Class 1

Schüco Door System ADS 50.NI


Max. glass/panel thickness	32 mm
Max. width	1100 mm
Max. height	2500 mm
Max. vent weight	200 Kg
Area of application	External use, Internal use, Commercial projects
Air permeability	Class 2
Watertightness	E 1500
Burglar resistance	Up to RC 2
Wind load resistance	Class C3

Schüco Door System ADS 60


Uf value of frame (≥)	2.6 W/(m²·K)
Max. glass/panel thickness	42 mm
Max. width	1100 mm
Max. height	2500 mm
Max. vent weight	150 Kg
Area of application	External use, Commercial projects
Air permeability	Class 2
Watertightness	Class 5A
Burglar resistance	Up to RC 2
Wind load resistance	Class C3
Impact resistance	Class 1

Schüco Door System ADS 65


Uf value of frame (≥)	2.2 W/(m²·K)
Max. glass/panel thickness	45 mm
Max. width	1250 mm
Max. height	2500 mm
Max. vent weight	150 Kg
Area of application	External use, Residential projects, Commercial projects
Air permeability	Class 2
Watertightness	Class 5A
Burglar resistance	Up to RC 3
Wind load resistance	Class C3
Impact resistance	Class 1

Schüco Door System ADS 65.NI


Max. glass/panel thickness	39 mm
Max. width	3180 mm
Max. height	3220 mm
Area of application	External use, Residential projects, Commercial projects
Burglar resistance	Up to RC 2

Schüco Door System ADS 70.HI


Uf value of frame (≥)	1.7 W/(m²·K)
Max. glass/panel thickness	52 mm
Max. width	1250 mm
Max. height	2500 mm
Max. vent weight	150 Kg
Area of application	Residential projects, Commercial projects
Air permeability	Class 2
Watertightness	Class 5A
Burglar resistance	Up to RC 3
Wind load resistance	Class C3
Impact resistance	Class 1

Schüco Door System AD UP 75


Uf value of frame (≥)	1.4 W/(m²·K)
Max. glass/panel thickness	53 mm
Max. width	1400 mm
Max. height	3000 mm
Max. vent weight	200 Kg
Area of application	Residential projects, Commercial projects
Air permeability	Class 4
Watertightness	E 750
Burglar resistance	Up to RC 3
Wind load resistance	Class C3 / B3
Impact resistance	Class 1

Schüco Door System ADS 75.SI


Uf value of frame (≥)	1.6 W/(m²·K)
Max. glass/panel thickness	57 mm
Max. width	1250 mm
Max. height	2500 mm
Max. vent weight	150 Kg
Area of application	Residential projects, Commercial projects
Air permeability	Class 2
Watertightness	Class 5A
Burglar resistance	Up to RC 3
Wind load resistance	Class C3
Impact resistance	Class 1

Schüco Door System AD UP 90 BL Residential


Uf value of frame (≥)	1.6 W/(m²·K)
Max. glass/panel thickness	82 mm
Max. width	1250 mm
Max. height	2500 mm
Max. vent weight	120 Kg
Area of application	External use, Residential projects
Air permeability	Class 2
Watertightness	Class 3A
Burglar resistance	Up to RC 2
Wind load resistance	Class C2 / B2
Impact resistance	Class 1
